Don’t bother with cheap alternatives! Our converters can be adapted to most any Wiegand format (up to 99 bits). Plus, Windows software makes setup a breeze!

Wiegand Format Converter devices provide data conversion and formatting for a variety of uses including access control, data decoding, protocol verification, and more! Wiegand converters are suitable for use with devices including card-readers, sensors, etc. They are also compatible with smart hosts such as mobile devices, tablets, PCs, and laptops. There are two available converter devices:







Features:


  • Converts to/from standard ASCII strings

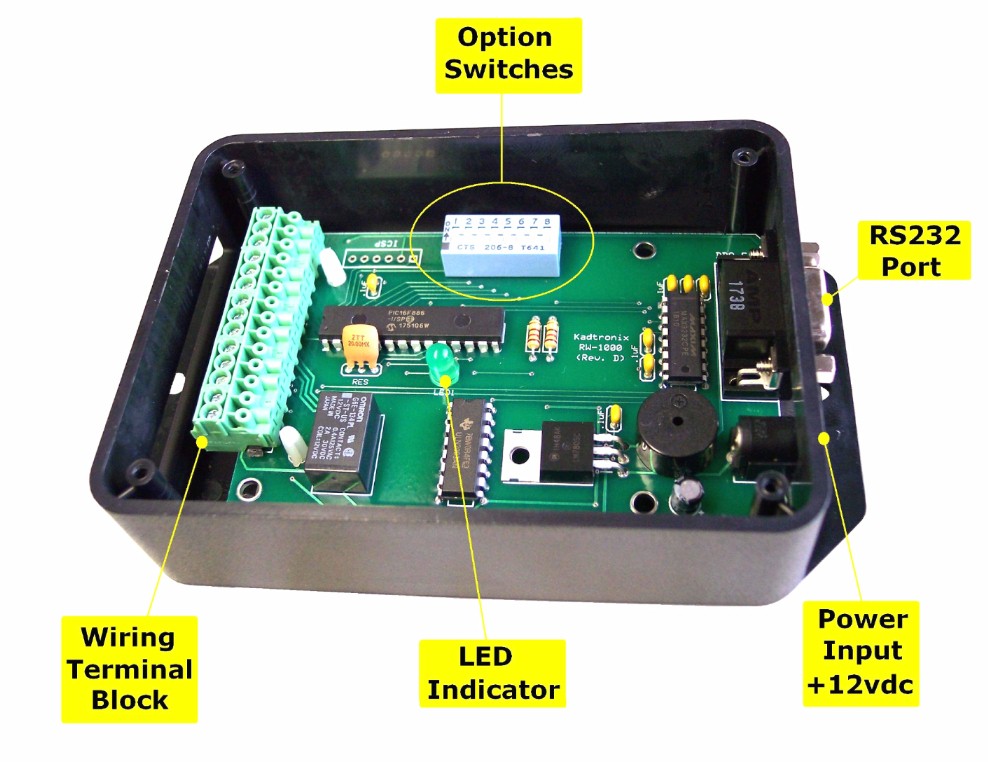

  • Onboard DIP switch option settings
  • Compatible with RS-232 devices
  • New! Format activity indicator (red)
  • Configurable Wiegand formats including 26-bit
  • User-defined formats also possible
  • Selectable baud rates: 9600 & 19200
  • DB9 serial connector

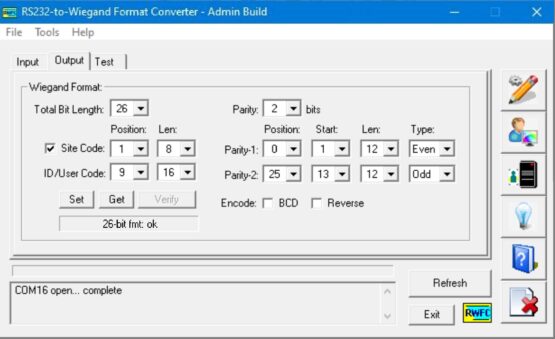

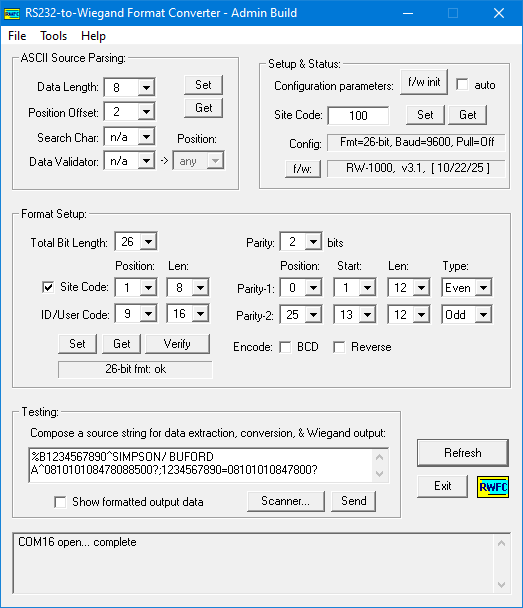

  • Available Windows host software for format setup
  • New! Windows comm. test utility for RS-232 devices
  • Compact size (measures 5.3″ x 3.3″ x 1.5″)
  • Available in two packages: starter & essentials. (First-time customers should obtain the starter system which includes Windows software and USB-to-RS232 adapter cable. The essentials package is intended for prior customers who have previously purchased a starter system and therefore already possess the software and USB adapter cable.)











What’s Included:

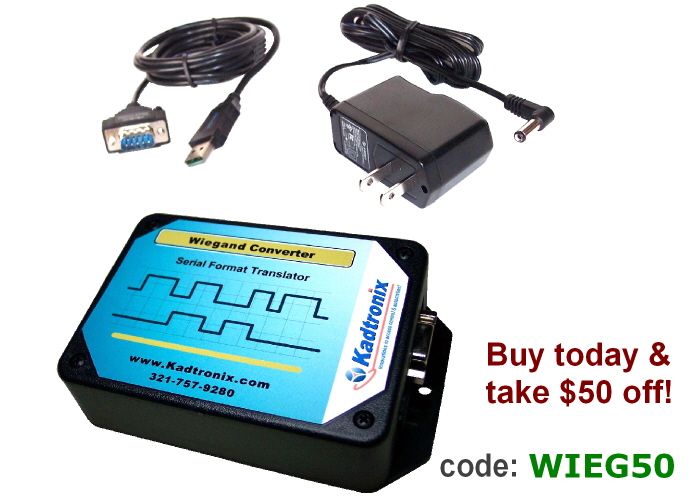

  • Converter device
  • Windows software (starter pkg only)
  • USB-to-RS232 adapter cable (starter pkg only)
  • 9-pin gender changer
  • AC adapter (12vdc)





Additional Info:

Details





Resources:

Serial/Wiegand Wiegand/Serial



Ask a Question:

Inquiry





Customization:

Got a special request? We can tailor this item to suit your application.

Customize



Weight 1 lbs
Format conversion

Serial-to-Wiegand, Wiegand-to-Serial

Package options

Standard starter system, Essentials (cost saver)
