  • Wi-Fi Multi-Device Control (WMDC)

    Automated wireless remote control
    for hotel energy management,
    industrial control, and more!



    for 802.11 wireless networks


    Description

    The Wi-Fi Multi-Device Control (WMDC) System provides automatic control for remotely located devices or equipment including HVAC units, pumps, industrial machinery, and more. Well-suited for both short-term and long-term control, the WMDC provides automatic control via schedules which you create. For instance, a hotel manager can specify a schedule to activate the air conditioning in room 214 for a guest whose reservation indicates that he will be arriving in two weeks and staying for 5 days and nights.

    You can even designate specific days of the week within a schedule. For instance, the building supervisor of a school can can create a nine-month schedule which automatically activates the HVAC system for individual classrooms, but disables the system on Saturdays and Sundays.

    Ideal for hotel room energy management, the system is capable of providing automatic control for up to 100 remote units such as individual guest rooms and offices. The following venues are candidates for use with the WMDC:

    • Hotels
    • Office complexes
    • Hospitals
    • Schools
    • Rental properties
    • and more!

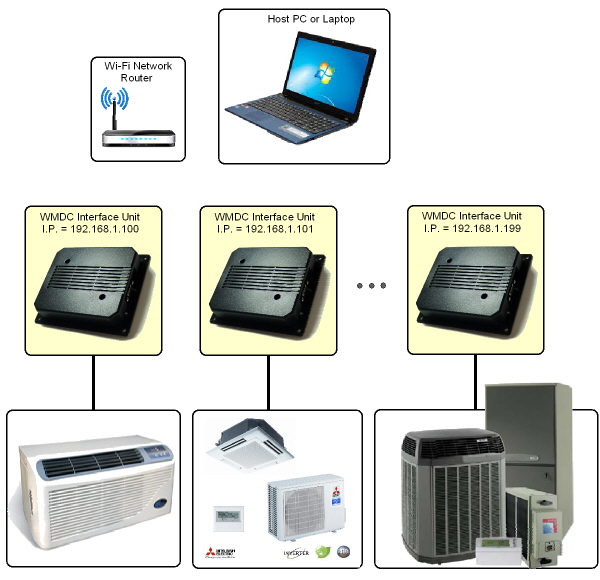

    The illustration below depicts a typical configuration and highlights the communications hierarchy:


    The product is a plug-and-play solution that consists of up to 100 remote controllers and compatible Windows software. The
    WMDC supports the following remote operations:

    • Manual Off
    • Manual On
    • Scheduled (automatic) On/Off

    Scheduling permits you to define one or more events for automatic execution. Each event defines a start date/time (activation) and an end date/time (deactivation). The scheduling feature supports up to 10 individual events per remote device. (Events are created at the host and uploaded to the controller where they are stored in non-volatile memory. Subsequent host interaction is not required.)

    The WMDC controller is sleek and compact, measuring only 5.5" x 4.75" x 1". This Wi-Fi solution is simple to install and requires no communications wiring. It is ideal for use in a number of applications:

    • HVAC control
    • Automation
    • Remote control
    • Equipment activation
    • Scheduled alerts
    • Access control
    • OEM applications
    • Robotics
    The WMDC permits you to configure the WM-1000 controller, operate the onboard relay for activation/deactivation, and create event schedules.

    The WMDC is comprised of two primary elements:

    • WM-1000 controller
    • WMDC software (Windows)

    Compatible with standard Wi-Fi networks, the WM-1000 controller is a self-contained device with wireless TCP/IP interface and AC adapter.

    WMDC Client software is
    compatible with WM-1000 controllers. This software provides functions for controller configuration, initialization, scheduling, and more!  There are 3 available editions: lite, standard, & premium. The table below summarizes the features for each edition:


    WMDC Software Features

    Feature List
    Lite Standard Premium
    Ethernet TCP/IP communication via Wi-Fi
    Provides relay activation methods
    Supports device configuration & initialization
    Supports remote activation of relay device
    Supports event scheduling
    Supports 1 remote relay controller & 1 scheduled event


    Supports up to 10 remote relay controllers & 5 scheduled events for each controller


    Supports up to 100 remote relay controllers & 10 scheduled events for each controller



    WM-1000 controllers are easily configured for your network using a suitable USB-to-RS232 adapter. Or, if desired, we can pre-configure the controller(s) for you. The following network parameters are applicable:

    • SSID
    • Passphrase
    • Gateway (router) address
    • Static I.P. address
    • Port number

    The following network authentication modes are supported:

    • WEP
    • WPA
    • WPA-PSK

    Installation is a breeze. Simply wire your device or equipment under control to the onboard relay (via convenient screw terminals). Mount the controller unit onto a convenient wall or other surface and plug the AC adapter into a nearby wall outlet. Use our Windows PC host software to configure network parameters and specify a device ID.




    Features:



    Wireless operation - no communications cables
    Easily integrates into your network
    Internally integrated Wi-Fi antenna
    TCP/IP protocol
    802.11 b/g
    Authentication modes:  WEP, WPA, WPA-PSK
    Onboard relay with 10A contacts
    Supports both manual operation or automatic scheduled events
    Supports manual override via host command or wired input.
    Status LEDs: system status plus network indicators
     Windows host software for configuration, initialization, & scheduling
    Automatic date/time correction and schedule upload
    Internal DIP switches for Wi-fi configuration mode
    DB9 host interface for configuring Wi-Fi interface parameters
    Slimline enclosure, measures: 5.5" x 4.75" x 1"
    Easily detached lid for wiring and configuration operations
    Includes AC adapter



    Design Licensing

    This item is available for licensing to OEMs. This design is available for OEM licensing.  Licensing permits your company to manufacture this item and allows you royalty-free sales and distribution rights.  Click here for additional details.




    Wiring

    Customer wiring is performed using convenient screw terminals.   The table below lists the terminal connections:


    Terminal Description
    1 Ground
    2 Input power (+12VDC)
    3
    +5VDC out (200 mA max)
    4 N/A
    5 N/A
    6 Manual activation (override)
    7 Ground
    8 Ground
    9 Switch / sensor
    10 Switch return
    11 Reserved
    12 Relay (COM)
    13 Relay (N/C)
    14 Relay (N/O)
