Magstripe
/ Proximity
Card-Access
Systems
(MCAS)
For
security,
automation,
and access
control!
Keypad
/ LCD
Access
Controller:
| Does
your facility need a remote interface terminal with keypad & LCD
for
access control with PIN entry capability? MCAS-6x00 is available
with a keypad/lcd display. |
Click
here for details.
|

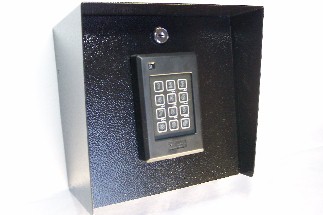

Outdoor Controller with
Weatherproof Enclosure:
| MCAS
systems are suitable for use both indoors and outdoors. Choose
magnetic
stripe or proximity card-reader with optional integrated keypad.
Includes internal
MCAS-1810 controller with FWTB. |
Click
here for pricing
|
Description
The MCAS-1810
card-reader controller is perfect for OEMs, resellers, and DIYers who
want
to configure a card-reader system and need reliable, low-cost
controllers.
Ideal for applications including access control, security, automation,
vending machine and laundry equipment controllers, hotel room access,
gated
communities, industrial control, pumping stations, and more.
Features
battery-backed onboard database, time/date, and multiple host comm.
options.
Compatible card-readers include magnetic-stripe &
proximity.
Acceptable card-reader interfaces include TTL (clock/data), RS-232, and
Wiegand. Companion FWTB provides control
relay
for activating a door, gate, or other external device. Also
provides
optional RJ45 port for Ethernet TCP/IP host comm.
Pricing
/ Quotes
Pricing
will depend largely on your specific application and hardware
requirements.
If you would like a price quote, please use the link below:
Briefly
describe your application and any specific requirements. We'll
provide
a detailed price quote, usually within 24 hours. For additional
pricing
details, click here.
Q
& A
Got questions?
We've got answers. Visit the Frequently
Asked Questions (FAQ) page. The
MCAS
User Manual is now available for viewing online and describes
details
of the system including how to use the host PC software.
Firmware
*New
arrangement allows you to purchase the blank, unprogrammed device
directly
from the supplier, saving you $$$. We'll program the card-reader
firmware and test each unit. Choose a link below to learn more
about
firmware programming options:
MCAS-1810
Controller-Only Firmware
MCAS-6x00
Controller + Keypad + LCD Firmware
Featured
application:
Keyless
Mailbox / Locker
|
| Kadtronix
specializes in access control, automation, and realtime software.
We have developed a number of solutions since our inception. Our
featured design is a Keyless Mailbox / Locker
Controller. No keys are required; the patron simply
swipes
his assigned card at the reader (magnetic stripe, barcode, or RFID) and
enters a 4-digit PIN to unlock his mailbox, locker, or safe.
If
you need assistance or have a design request, contact
us today.
|
Field-Wiring
Terminal
Board
The MCAS
field-wiring terminal board (FWTB) is now available for easy
interfacing.
Features 16 screw terminals for interfacing RS-485 cabling, power
supply,
and card-reader. Also provides power switch, flashing status LED,
AC jack, and onboard door activation relay. (Availalbe for the
MCAS-1810
controller-only option.)
Field-Wiring
Terminal Board for MCAS-1810
Click
here for details
You
can also use MCAS with barcode scanners. Well-suited for process
control applications, you can use MCAS to activate a device or alarm
when
a set of defined barcode values are detected. Or use for access
control
like a magstripe card.
Low-cost
Windows PC host software provides the command and control
interface.
(Magstripe card-reader, cards, door-access hardware, and wiring not
included.
Requires RS232-to-RS-485 PC host converter*, also not included.)
[An array of low-cost RS232-to-RS485 converters can be obtained from B&B
Electronics.)]
Card-Reader
Controller
Features
-
Several
PC host comm. protocols.: RS-485, Ethernet, RS-232
-
Configurable
activation timer keeps access enabled for specified time period
-
Supports
magstripe TTL (clock/data), Wiegand (MCAS-1810 only), and RS-232
card-readers
-
Also supports
proximity
readers and barcode scanners
-
Accepts
standard track-2 cards including driver license, ATM, grocery, credit
card
-
Also accepts
precoded cards and picture ID badges
-
Uniquely
addressable
-
Onboard
battery-backed database maintains user data even if host link is lost
-
Firmware
supports 20+ host PC commands
-
Add, modify,
and delete users
-
Supports
up to 1000 users
-
Low-cost
Windows
PC software available for command and control
-
Compact
size: controller board measures (3.5" x 2.5")
-
Field
wiring terminal board (FWTB) for convenient wiring
|
Technology Licensing
 |
This technology is available for OEM
licensing. Licensing
allows your company to manufacture this item and gives you royalty-free
sales and distribution rights. Click here for
additional details. |

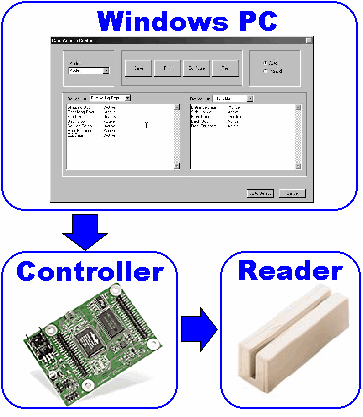

MCAS
Design
Overview
Proximity / RFID Card-Reader
| (Note:
Card-readers
have different pin-outs and voltage requirements. Consult your
specific
device's documentation for hook-up information. |
Magstripe
Card Access System (MCAS)
Do you
need a quality access control system that's affordable and
expandable?
The Magstripe Card Access System (MCAS) could be just the thing you've
been looking for. Featuring magstripe/proximity card reader,
controller
unit, host adapter, and software, the system provides user access
wherever
you want it. This distributed system maintains a local database at each
reader. This means that the system remains operational even if
the
host PC is down or the connection is lost. The MCAS is
easily
expanded for the desired number of reader units, all controlled from
the
convenience of the host PC. Ideal for business and industry, the
MCAS is suitable for the following applications and more:
Entrance
/ exit gate
Building
access
Home entrance
Security
Pumping
stations
Driveway
gate
Gated
communites
The
master controller (host PC) allows you to perform these
operations:
Add /
remove users
Configure
control units
Take a
control unit offline
Set activation
parameters
Configure
access h/w interface
|
MCAS Host
Control Application for Windows
Version
2.0
MCAS
Host Control Software gives you full control of your access
system
for one convenient location. Quickly add or remove a user, or
enable
access. (Requires Windows 98 or higher.) One of the
beauties
of MCAS is its expandability. If you need to expand access
coverage,
simply add controller/reader units (up to 32). May be used with
solenoid
latches, locks, and other electro-mechanical devices. (Free
demonstration is now available for download.) Click
here for details.
|
Magnetic
Stripe Card-Reader
Designed
for long-life and dependable service, the swipe reader accepts a card
from
either end of the device. The reader and control unit are attached via
several feet of cable. For best protection, install the control
unit
away from the reader, behind a wall or inside a secure container.
The
following magstripe card-readers are compatible with MCAS:
|
Manufacturer
|
Reader
Description / Model
|
|
MagTek
|
MagTek TTL Reader (#21050002)
MagTek TTL Reader (#21050004)
MagTek RS232 (Track 2) Reader (#21040075)
MagTek RS232 (Track 1,2) Reader (#21040071) |
|
Kantech
|
Polaris #POL-2
Polaris #POL-2KP (with integrated keypad) |
|
Barantec
|
CASM6X2CD
(with integrated keypad) |
|
Proximity
/ RFID
Reader
MCAS
is also compatible with a number of proximity readers including the HID
ProxPoint Plus Proximity Reader (#6008B). (Uses 1386 Prox-II
cards.)
|

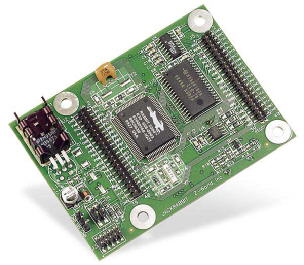

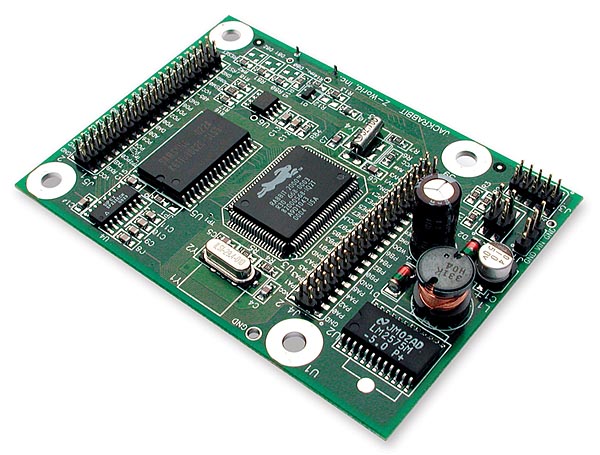

MCAS Controller
(sold
separately)
Each
controller unit contains a microcontroller module with resident 15 MHz
processor. This is the heart of the unit and provides the
processing
power required for interfacing the card-reader, maintaining on-board
database,
and communicating with the host.
|
|
|
