Access Controller with Enclosure
plus card-reader & optional keypad

Ideal for door/gate access, equipment
control, pumping stations, and more!


Click here for larger image


  • Description

    		•
    The Access Controller with Enclosure (KD-ACE) provides reliable access control for a wide array of applications. Consisting of card-reader (and/or keypad), internal controller, and sturdy aluminum enclosure, the KD-ACE is suitable for use both indoors and outdoors.  Available communications interfaces include Ethernet LAN and RS-485.  Remote access over internet is also possible.

    Choose magnetic stripe or proximity card-reader with optional integrated keypad.  Weatherproof enclosure for outdoor applications.  Includes internal controller with field-wiring terminal board for easy wiring. Suitable applications include:

  • Door/gate access
  • Security systems
  • Automation
  • Equpment control
  • Pumping station controller
    		•


  • Control Electronics

    		•

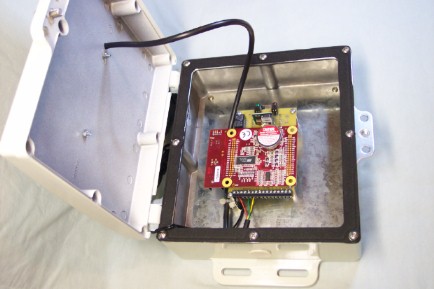

    The control electronics are housed insided the protective enclosure and consists of MCAS-1810 single-board computer with onboard database for up to 1000 users.  Also features battery-backed static-RAM (SRAM).  Host computer interface can be Ethernet (TCP/IP) LAN or RS-485.  Multiple controllers can be networked to a single host PC.

    Field-wiring terminal board (FWTB) provides easy wiring using simple screw-terminal connections.  Connections are provided for card-reader, host computer interface, relay contacts, and DC power.  Built-in relay can be used to control a gate opener, door lock, or other external device.  (Max. relay switching current 0.5A.)





  • Card-readers

    		•
    The KD-ACE controller may be used with magnetic stripe, proximity, and barcode readers.  Readers with integrated keypad are also available.  Compatible card-reader interfaces include clock/data, Wiegand, and RS-232.

    Magstripe card-reader

    Proximity card-reader
    Proximity card-readers, integrated keypad (center)



  • Host Software

    		•
    MCAS Host Control Software
    MCAS Host Control Software gives you full control of your access system for one convenient location.  Quickly add or remove a user, or enable access.  (Requires Windows 2000 or higher.)  One of the beauties of MCAS is its expandability.  If you need to expand access coverage, simply add controller/reader units.  Click here for details.



  • PC Requirements
  • Windows 2000/XP/Vista
  • Pentium CPU
  • 5 MB RAM
  • 1 MB Available Hard Disk Space
  • VGA Monitor
  • Ethernet port (if applicable)
  • RS-485 port (if applicable)
    		•

    What's your application?  Kadtronix can provide the right mix of hardware and software to suit you.  Contact us today or request a free quote.
