  • Description
    •

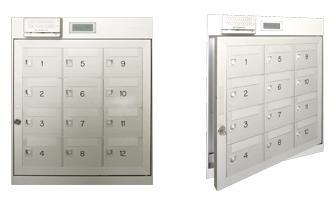

    The Keyless Mailbox / Locker System (KMLS) is an integrated access control system for OEMs who want to build their own keyless mailboxes or lockers.  No keys are required; the patron simply swipes his assigned magnetic stripe, barcode, or proximity ID card through the reader and enters his private 4-digit PIN to unlock his mailbox,  locker, or safe.

    Consisting of electronic controller, card-reader, keypad, and liquid crystal display (LCD) module, the KMLS provides convenient, secure access to mailboxes, lockers, or safes, without the use of keys.


  • Card-readers
    •
    KMLS can be used with magnetic stripe, barcode, or proximity (RFID) card-readers.  Interfaces include TTL (clock/data), RS-232, and Wiegand.

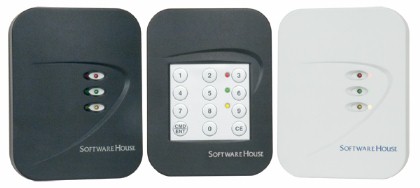

    Proximity (RFID) card-readers
    Proximity (RFID) readers


    KMLS-compatible card-readers include these models:

    Card-reader Compatibility
    Model Type Keypad Manufacturer
    21050002 Magstripe
    No
    		 Magtek
    21040075 Magstripe
    No
    		 Magtek
    POL-2 Magstripe
    No
    		 Kantech
    POL-2KP Magstripe
    Yes
    		 Kantech
    CASM6X2CD Magstripe
    Yes
    		 Barantec
    OEM150 Proximity
    No
    		 HID Corp.
    SWH-4200 Proximity
    Yes
    		 Software House
    6008B Proximity
    No
    		 HID
    WCR3227-600S Barcode
    No
    		 IDTech

    (If you desire to use a card-reader that is not listed above, contact us.)

  • Controller
    •

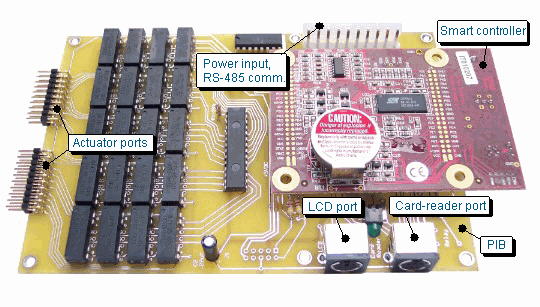

    The KMLS controller is the interface between the smart controller and the electronic locks or actuators.  performs lock control and is comprised of two mating circuit boards:  the smart controller, and the power interface board (PIB).  The smart controller attaches to the PIB as a daughter card.  The smart controller is a single-board computer which provides intelligent access control, onboard database, and built-in RS-485 multi-drop capability.  The PIB operates under the control of the smart controller and provides interfacing to the locks.  A single KMLS controller can control up to 20 or more locks, each corresponding to an individual mailbox or locker. (Optional expansion modules can be applied for controlling additional locks.)  Maximum current draw per lock is 500mA.  The two-board set, measuring 7" x 4.5", is shown in the phto below:
  • Actuators
    •
    The KMLS is compatible with several types of locking mechanisms including actuators, solenoids, and magnetic locks.
    Rotary actuator
    Dead-bolt actuation using rotary actuator

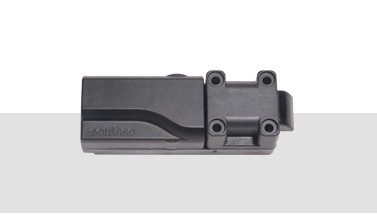

    Smart Mini-Actuator




    Sample application - Hotel safe
    using Smart Mini-Actuator






    Linear actuator
    Linear actuator


  • Host Software
    •
    KMLS host software provides flexibility plus convenience and gives the administrator central control of the system.  The software application includes patron database, configuration commands, and more.    Check out these features:
  • Database maintenace
  • Controller configuration
  • Card monitoring
  • 3 operational modes
  • Upload new users
  • Auto-detect controllers

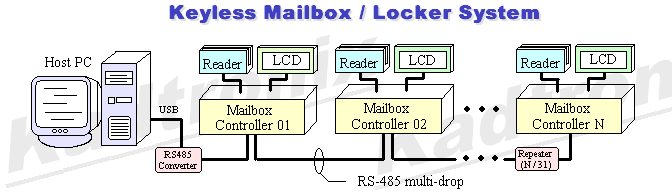

    • Configure controllers for one of three available modes: card-only, PIN only, or card and PIN.  Assign, remove, or modify users instantly and from one central location.  RS-485 multi-drop protocol allows for host communication and control up to several thousand feet away on a single twisted-pair cable.


  • Applications
    •
    KMLS is suitable for these applications and more:
  • Post offices
  • Apartments
  • Hotels
  • Gym locker rooms
  • College dormitories
  • Shopping malls
  • Gated communties
  • Airports

    •

    Keyless Electronics Design White-Paper

    Read the design white-paper.  Click the link at the right to download.

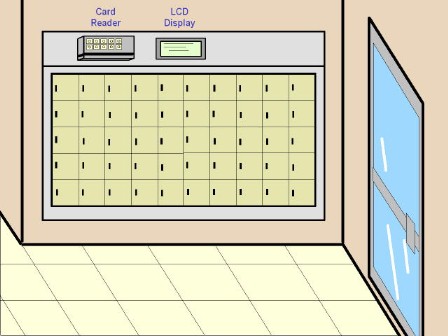

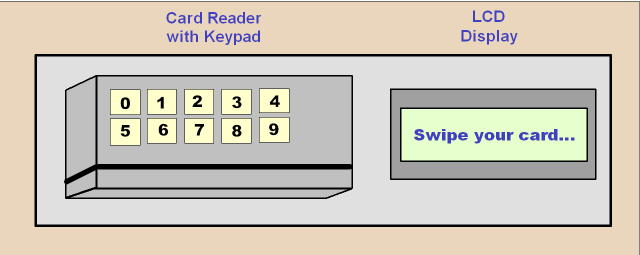

    Typical Application:  Consumer Post-Office Boxes

    (click the image to zoom)

  • Contact Us

    •


    To learn more about KMLS including pricing and availability, contact us.
