- Smart Temperature Relay Switch -
Remote Environmental
Monitoring & Control
featuring wireless RF
temperature / humidity sensing
|
|
|

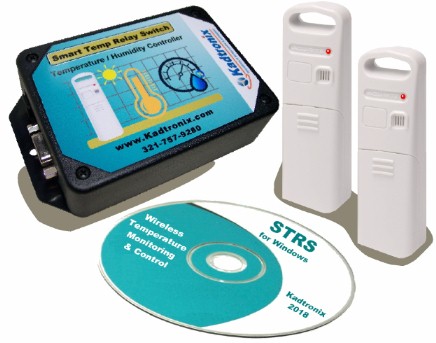

The
Smart Temperature Relay Switch (STRS)
provides automatic control of user equipment based upon
specified environmental trigger conditions (i.e., temperature and/or
humidity). Utilizing compatible wireless RF sensors, the system is
useful in a vast array of applications. With companion Windows
application software and USB adapter cable (included), you may easily
configure desired temperature/humidity limits and resulting trigger
actions. The Windows application allows for occasional offline
configuration setup, or can remain continuously active for online
activities including realtime monitoring and/or optional logging. The
STRS is comprised
of the following
elements:
- STRS
controller with integrated wireless RF receiver
- Built-in
relay with Form C contacts plus convenient wiring screw terminals
- One or
more wireless temperature/humidity sensors (see note below)
- Windows
application software (for configuration setup, realtime monitoring,
and/or optional logging)
The STRS is ideally suited for any application where it may
be necessary to control equipment action based upon changes in
temperature and/or relative humidity:
- Climate
control
- Exhaust
systems
- Farming
and agriculture
- Environmental
control
- Industrial
automation
- Plant
& produce cultivation
- Freezer
alarms & refrigeration systems
Note: While
the STRS can monitor an unlimited number of wireless sensors, a maximum
of four (4) sensors can be selected for trigger-based control.

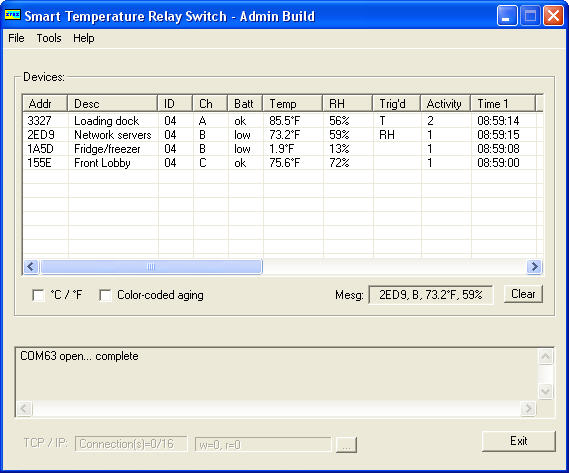

Windows application software permits you to configure
operational settings including temperature and humidity limits. Assign desired configuration
settings to suit your application. Then, simply upload to the STRS
controller device. (Requires USB-to-RS232 adapter). Once your settings have been
uploaded, the USB connection is no longer required, but may remain
attached for realtime monitoring and/or optional logging (premium
edition only).
Installation
is
a breeze. Simply run the setup installer and follow the on-screen
instructions. Next, apply batteries in each remote sensor. The Windows
application will automatically detect sensor signals (transmitted every
16 seconds) and display the data. Easily define trigger settings,
notifications, delays, etc. There are two
available software editions:
Compatible wireless RF sensors by AcuRite provide long-range
coverage (up to 300 ft.) for remote monitoring of temperature and
relative humidity.
Indoor / Outdoor
(temperature & humidity)
|

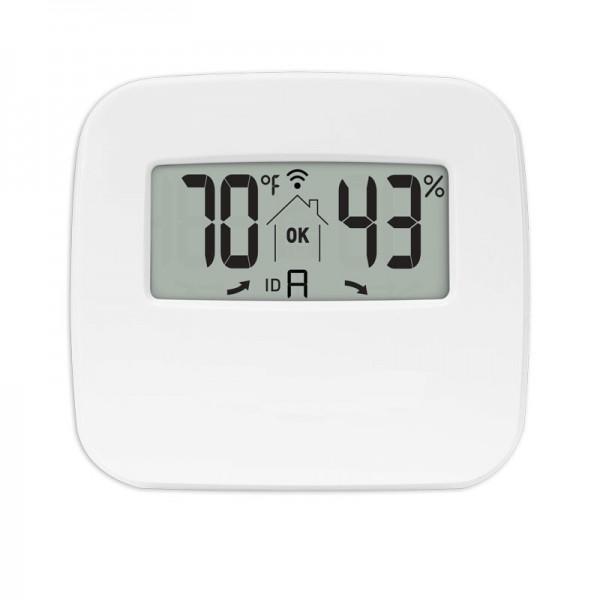

Indoor
sensor
w/ digital display
(temperature & humidity)
|
Features:
|
|
|
 Evironmental
monitoring & control via compatible wireless sensors
Configurable
settings including
setpoint triggers for temperature and/or relative humidity
Four (4) LED
indicators show trigger status at a glance
Available
low-cost wireless RF sensors for remote temperature/humidity monitoring
Assign
trigger setpoints for as many as four (4) individual wireless sensors
Also accepts
optional switches for hard-wired triggering
Onboard
relay with N/O and N/C contacts (rated 10A @ 125VDC, 6A @ 277 VAC)
Temperature
range: -40 deg.F to 158 deg.F (-40 deg.C to 70 deg.C)
Windows
software for configuration and monitoring (includes USB adapter cable)
Optional
event logging (premium edition only)
Compatible
with Windows
XP, Vista, Win7, Win10, etc.
|
Design
Licensing
 |
This
design is available for OEM licensing. Licensing permits your company
to manufacture this item and allows you royalty-free
sales and distribution rights. Click here for
additional details. |
Documentation
User Manual
(free PDF download)
|
|
Download
|
|
|
For product
info, options, and
pricing, use one of the convenient links below:
Notes:
- Your
order will contain no CD or other software media. Instead, the
software must be downloaded from our website.
|
|
|
