    Use your PC as a multimedia kiosk!

    low as $39

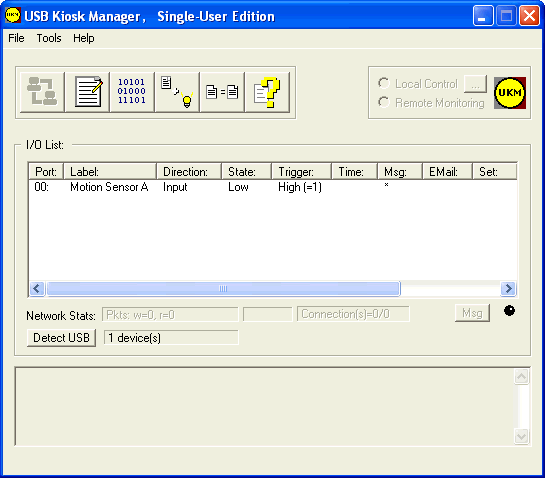

    The USB Kiosk Manager (UKM) lets you use your PC as a multimedia kiosk.  Compatible with UsbMicro U4x1 hardware, the UKM can be used with external peripherals including motion detectors, lights, buzzers, motors, cameras, and more!

    The UKM allows you to specify an action to occur when a specific trigger input occurs.  For instance, you can configure the software to play a .wav file or video presentation when a motion detector trigger occurs.  Even activate a screensaver, send an email message, launch an application, etc.  With 7 different notification types, the possibilities are limit-less.

    Web based services such as Gmail, Hotmail, and Yahoo cannot be used for sending e-mails.

    Kadtronix offers the USB Motion Detector which is compatible hardware for use with the UKM.


    • SCompatible with Kadtronix  motion detectors
    • Supports these UsbMicro devices: U401, U421, U451
    •  7 different notifications including email, sound, pop-up msg, set output, run application, system action, and X10 command
    • Attach events and perform test preview
    • Expandable by adding more modules
    • Configure notification delays to limit the number of notifications over a period of time
    • Compatible with Windows XP, Vista, Win7



    Kadtronix offers the USB Motion Detector, a bundled solution that includes plug-n-play motion detector and UKM software.  Click here for details.

    For those who wish to develop custom hardware, the UKM is also compatible with the following UsbMicro U4x1 interfaces:
    • U401
    • U421
    • U451

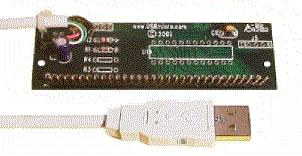

    USBmicro U4x1
    UsbMicro U401
  • 16 onfigurable I/O signals
  • 1 Mbps peak speed
  • Includes SPI interface
  •  Relay control (U451 only)
  • Board size: U401: 3.5" x 1.0",  U421: 1.5" x 0.75",  U451: 2.75" x 1.75"

  • Download
    Free 14-day trial offer:
    A free 14-day trial is available for a "try-before-you-buy" experience.  If you have possible PC compatibility concerns or you simply want to take a test drive, you are invited to install and use the trial.
    Download Now

    When you are ready to purchase, simply request a license key to activate your software.  No additional download will be required.

    Compatibility: This software operates a Windows PC and requires a 32-bit platform. (May not perform properly on 64-bit platforms.)


    Buy USB Kiosk Manager:
    USB Kiosk Manager (software only)
    (hardware not  included)
    USB Kiosk Manager, LAN Edition (software only)
    (hardware not included)
    USB Kiosk Manager Combo
    (includes USB Motion Detector
    reg $199.00
    sale $149
    click here

    *** Important:  Please read...***

    Purchases are handled by PayPal.  You do not need a PayPal account or membership.  Non-PayPal members may complete the purchase with a major credit card. When you are re-directed to the PayPal website,  simply click the "Secure Checkout" button if available.  Or, look for the following:

    "If you do not currently have a PayPal account,  click here".

    Software download instructions will be provided after purchase.
