12/24V
DC Robot Motor
|

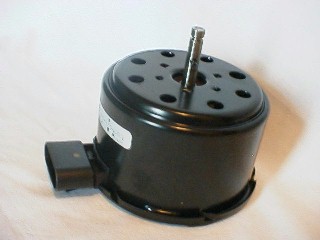

| Some
of our products feature this high-torque DC motor. (See Robot
Drive System and Motorized Robot Frame)
Originally intended as the power plant for electric bicycles, this motor
provides the drive needed for those larger 'bots. It's also well-suited
for driving accessories and/or weapons. |
|
|
Specifications
(12 / 24VDC):
12V:
| No
load RPM |
2500 |
| No
load current |
3.0
amps |
| Stall
current |
~65
amps |
| stall
torque |
27
in-lbs |
| Nominal
HP |
.25 |
| Peak
HP |
.3 |
| Calc
HP |
.27 |
| Weight |
3
lbs |
| Efficiency |
75% |
| Dimensions |
3-7/8"
diameter x 2-7/8" deep |
|
24V:
| No
load RPM |
5000 |
| No
load current |
3.0
amps |
| Stall
current |
~130
amps |
| stall
torque |
54
in-lbs |
| Nominal
HP |
.25 |
| Peak
HP |
.9 |
| Calc
HP |
.107 |
| Weight |
3
lbs |
| Efficiency |
75% |
| Dimensions |
3-7/8"
diameter x 2-7/8" deep |
|
|
|
|
|
|
|
