Robot Drive Kits

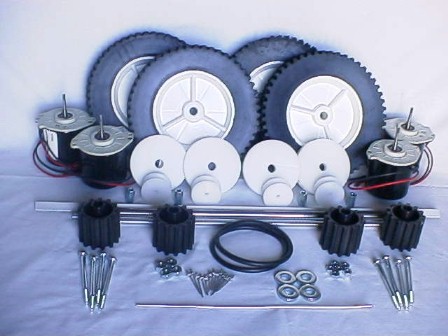

The Robot Drive Kit (RDK) is the basis for a powerful cog-driven robot.  Available in two forms, this system gives you the required parts needed to build your own robot platform.  The RDK-4 (left) contains components for building a four-wheel drive platform, including motors, cogs (gears), pulleys, metal tubes, stiffeners, belts, nuts, and bolts.  The RDK-4 is the basis of the Workman III robot platform.  (Templates are included for building this platform.)

Need some ideas for constructing a suitable chassis?  Check out the Robot Drive Kit Manual.  It contains parts lists, photos, descriptions showing how to build a complete platform using the RDK-4.

Click here to see the list of kit parts and pricing.




Only $109

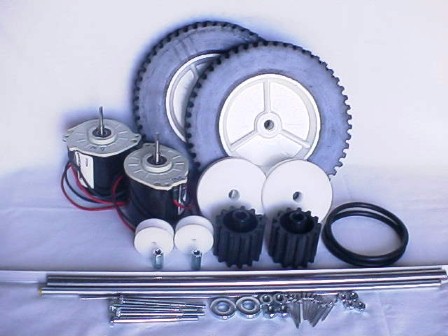

Want to build a two-wheel drive robot platform?  The RDK-2 (right) is a cost-effective solution that contains two drive wheels, motors, etc.

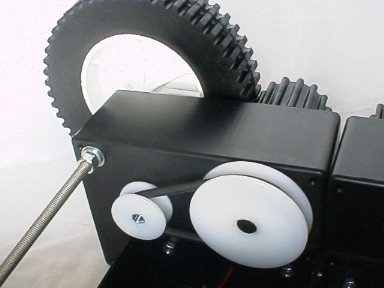

The Workman II and III robot platforms feature RDK components.    They use belt and cog drive systems to power each wheel.   The 12VDC motors are mounted inside the wheel compartments.  Check out the Robot Drive Kit Manual for construction and assembly details of the Workman III.

Got your own platform design in mind?  Don't spend days (and $$$) searching for parts that might not work the way you planned!  Use RDK components insead.  We've done all the up-front leg-work so you don't have to.  All RDK components are of the best quality and guaranteed to work.  And, because you're buying a kit, you know that the parts are compatible with one another.

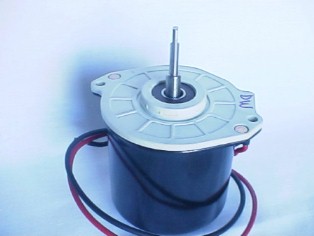

The RDK features powerful 12VDC motors.   These  2.25A, 2370RPM devices feature two #10 leads (18" long).




Once you've built a platform, you'll need controllers to bring it to life.  The RDK drive kit is compatible with the MC7 motor controller.  This PWM device provides variable speeds from stop to full forward or reverse and is available at  Diverse Electronic Services.




RDK4
 RDK2
 Robot Drive Kit  Parts
Qty
Qty
Description
4
2
 Mower drive wheel (8" x 1.75")
4
2
 Drive roller (2" dia.)
4
2
 Large nylon pulley (3.45" OD)
4
2
 Small nylon pulley (1.75" OD)
4
2
 Hex coupler (5/16")
4
2
 E-retainer ring (1/2")
2
1
 Metal tube (1/2" OD x 18" long) - for gear shafts and wheel reducer bushings.
8
4
 Nylon hole plug
8
4
 Lock washer (1/4")
12
6
 Flat washer (1/2")
2
1
 Aluminum wire (1/8" OD, 10-inch segment)
8
4
 Hex bolt (1/4" x 3-1/2", 1" threaded)
16
8
 Nut (1/4")
12
6
 Nut (3/8")
12
6
 Flat Washer (3/8")
2
1
 Threaded axle (3/8" x 18" long)
4
2
 12VDC electric motor
4
2
 Round belt (1/4" OD)
8
8
 Rivets (1/8" aluminum)
1
1
 Aluminum angle  (24" long)
2
2
 Workman templates





RDK Manual PDF Download:
The Robot Drive Kit Manual is available for purchase in electronic PDF format for a nominal fee.  When you purchase one of our robot drive kits, you receive the manual free of charge.  If you'd like to preview a section of the manual click here.

Download Now
