    Digital I/O Commander
    Which Digio product is right for you?
    Our selection guide can help.
    The Digital I/O Commander (a.k.a, "Digio"), is available in several variations.  Choose the interface and features you desire for your application.  Digio is compatible with the following popular interfaces:



    Our popular digital I/O control application is now available with serial RS-232 capability for use with the Parallax BS2 BASIC Stamp.




    Compatible USB and *RS-232 Interfaces

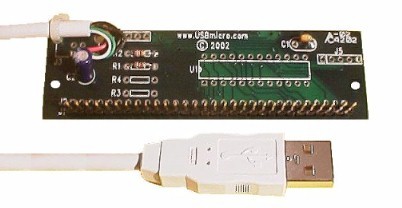

    USBmicro
    (U4x1)
    Activewire Inc.
    (AWI)
    * Parallax 2,3
    (BS2-IC))
    (for USB)
    (for USB)
    (for RS-232)





    USB & RS232 Digital I/O Commander ("Digio") Selection Guide


    USB Digio /
     U4x1
    USB Digio /
     AWI
    RS-232 Digio /
     BS2-IC
    Product
    Information
    Click Here
    Click Here 5
     Click Here 2,3,5
    Remote Monitoring
    over LAN

    Click Here


    Click Here
    Parallel Digital I/O
    16-bits
    16-bits
     16-bits
    Serial Peripheral
    Interface (SPI)

    FPGA/MCU
    FIFO Interface


    (See Note 1)

    RS-232/-422/-485
    Interface


    (See Note 1)

    (See Note 4)
    Max data
    transfer rate
    1 Mbit/sec
     12 Mbit/sec
     38.4 Kbaud
    Software
    Drivers
    Windows
    HID Class
    Custom
    Windows
    Configurable inputs
    and outputs
    Event triggers and
    notifications



    Note 1 This feature is implemented in with a special add-on card.  However it is not currently supported by Digio.
    Note 2 Digio software for the Parallax BS2-IC is now available.  (Parallax BS2-IC sold separately.)
    Note 3 The Parallax BS2-IC utilizes RS-232 for serial communication and does not have USB capability.
    Note 4 External converters are required for RS-422 or -485 interfacing (not included).
    Note 5
    Digio software only is available for this item.  Hardware sold separately.  Contact the vendor for details.

    * BASIC Stamp is a registered trademarks of Parallax, Inc
